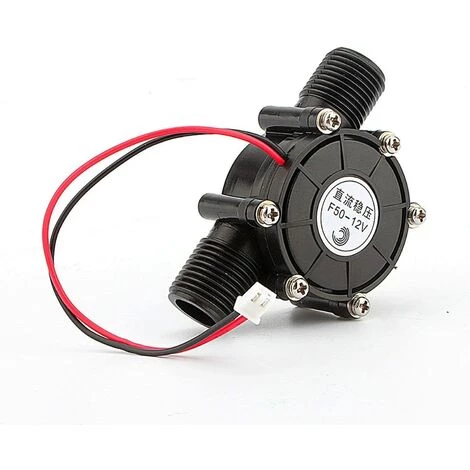

BARES DC Micro Hydro Turbine Water Generator 12V DC 10W

Eigenschaften

• Garantie: 2.0

The output voltage is 12V. The maximum output opening pressure is 1.2 Mpa.

Mechanical noise 55dB, generator life 3000h.

It can give 12V radio load, the LED lights power supply 10W, the maximum load current 220mA.

The output voltage without voltage regulator is proportional to the water pressure.

The area of the generator is clean, no rust, no scratches when large, sturdy structure.

Product Description

Features:

There are two kinds of lithium batteries on the market, with a charge management chip, a chip without charge management, the lithium battery must be charged management chip electric pulse, or prone to explosion.

Technical conditions:

– Output voltage: 12V

– Between wire resistance 10.5 ± 0.5Ω

– Insulation resistance 10MΩ (DC100 megger)

– The maximum pressure 0.6Mpa closed output

– The open Maximum output pressure 1.2Mpa

– Starting pressure 0.05Mpa

Mechanical properties and operating environment:

Appearance: clean generator surface , no rust, no scratches when large, solid structure.

Axial clearance 0.2-1.0mm

Mechanical noise ≤55dB

The quantity Generator weight: 90g approx

Generator life: ≥3000h

Package includes:

1 x 12V DC 10W DC Generator Turbine Generator water micro-hydroelectric water F LED lights
